Hex Bolts / Screws
Hex Bolts / Screws
Metric
Inch| PRODUCT | SIZE | PROPERTY CLASS | TENSILE STRENGTH | STANDARD | |
|---|---|---|---|---|---|

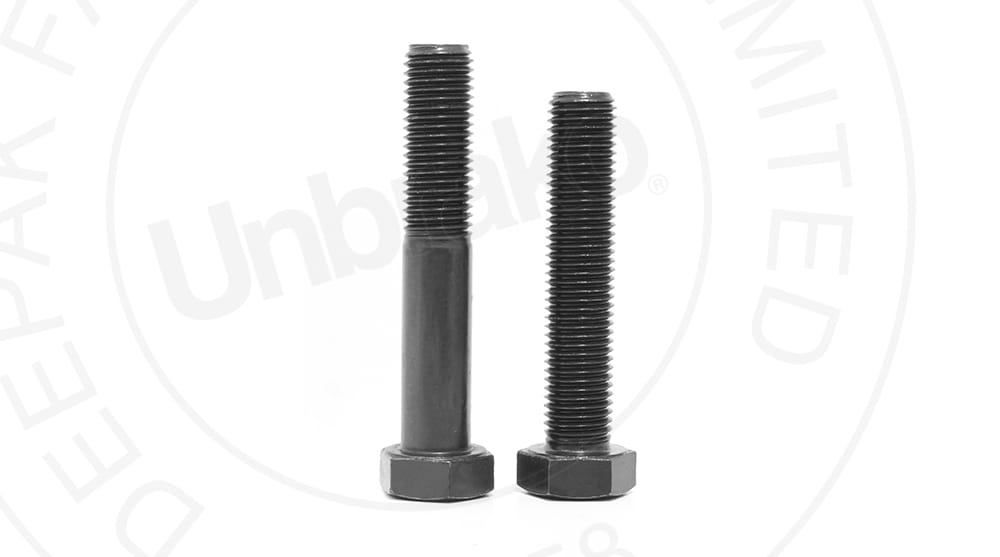

| Hex Head Bolt / Screw |
|
M4 to M80 | 10.9 | 1040N / mm2 min | ISO 4017 (Full Thread) ISO 4014 (Half Thread) |
| PRODUCT | SIZE | GRADE | TENSILE STRENGTH | STANDARD | |
|---|---|---|---|---|---|

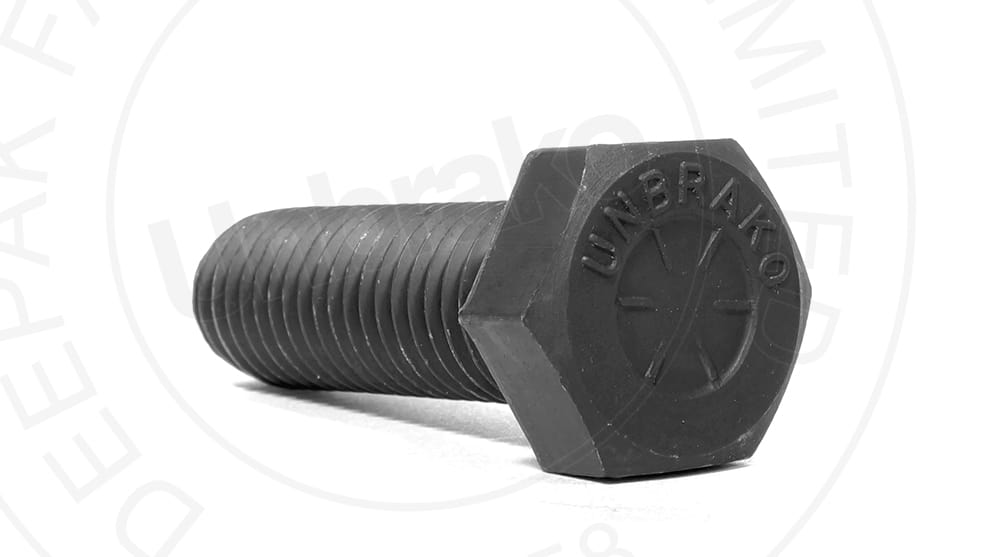

| Hex Cap Screw |
|
1/4 to 2 | 8 | 150,000 psi min | ASME B18.2.1 |

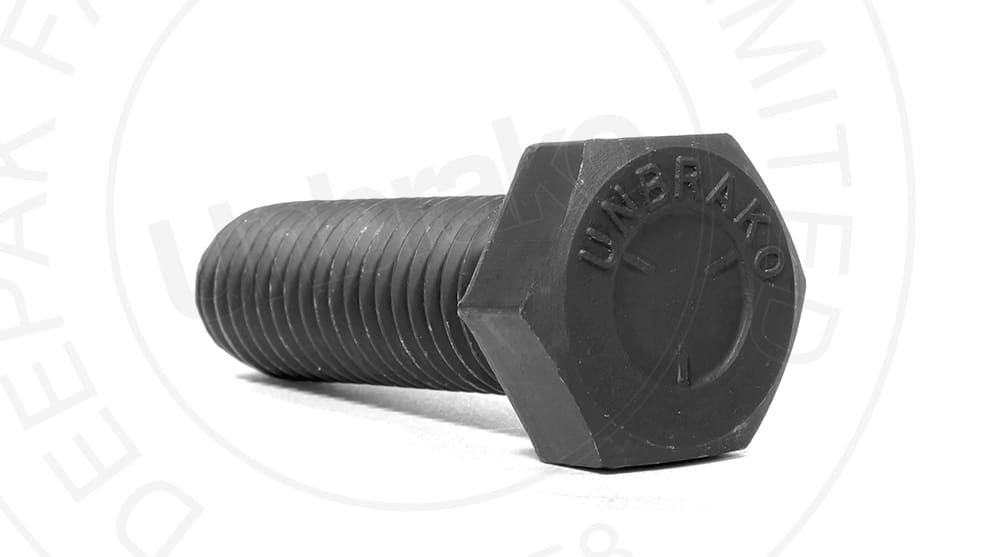

| Hex Cap Screw |
|
1/4 to 2 | 5 | 120,000 psi min (1/4 to 1) 105,000 psi min (over 1 to 1-1/2) |
ASME B18.2.1 |

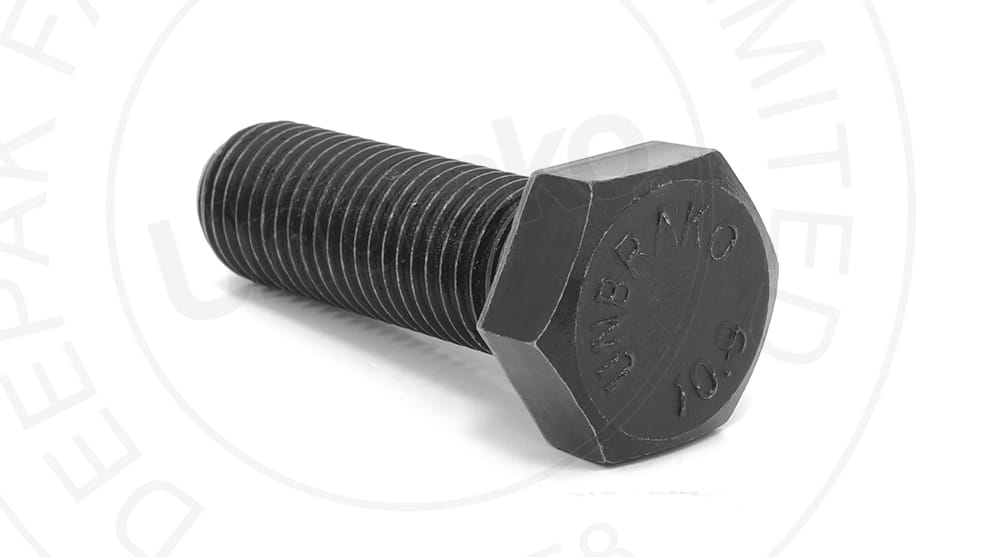

| Hex Bolt |
|
1/4 to 1 | A | 60 Ksi min | ASTM A307 / ASME B18.2.1 |
